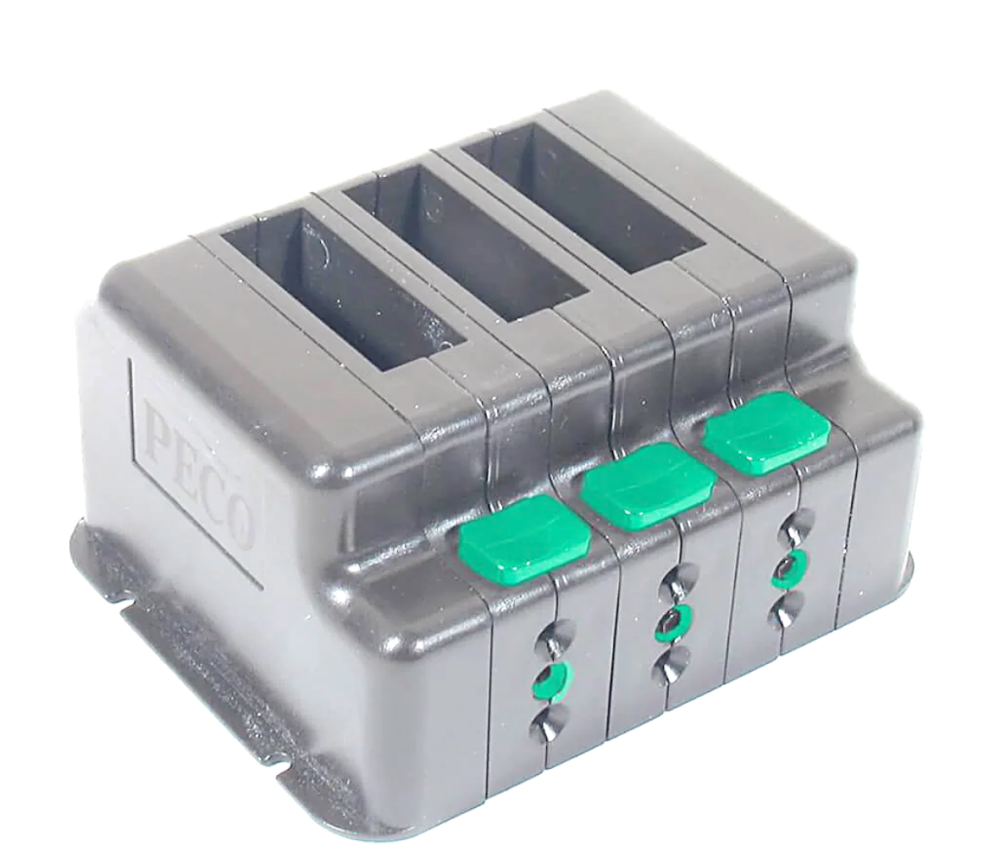

Peco PL-50 Turnout Switch Module

Recommended price £32.45   A pre-wired bank of three modules. Enables switches to be connected without any need for soldering. Power is supplied through the fitted leads and each switch is automatically connected when fitted. Simply push the button on the front to open the holes, and feed in the bare wires from the turnout motor - no soldering or other fixing required. The PL-51 allows the PL-50 module to be extended to any size required. Can be used for isolating power, 2 colour light signals, solenoid motors, polarity changing.  Suitable switches PL22, PL23 & all PL26 colours.

This system, whilst designed for use with the Peco PL-26 Passing Contact Switch, please do not to mix different switches within one module. This is because you will use different power supplies for the different electrical circuits. The underside connections on the switches differ from those of the PL-26. So, for example, you can have a block of PL-26 switches controlling your turnouts, another block for accessories such as signals using the PL23 Changeover Switch, and another block for the PL-22 On-Off Switch for isolating track sections.
